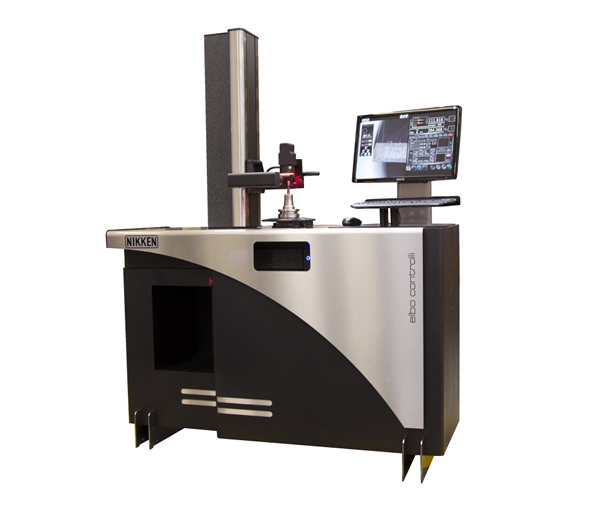

Прибор для настройки инструмента вне станка Nikken Amon Ra-TW Presetter

TECHNICAL DATA

600 - Measuring range: diameter max. 520mm (radius 260mm); height max. 600mm

800 - Measuring range: diameter max. 520mm (radius 260mm); height max. 800mm

• Machine structure in stainless-steel offering high mechanical resistance and long life, floor mounted with self-levelling supports in non-deformable steel, equipped of adjustable supports for monitor, keyboard and mouse with cable conduits.
• Base and column made of natural granite: linearity max error 2 µm/Mt - certification with Taylor Hobson res.1 µm/Mt. electronic millesimal level.
• ISO / BT / HSK / VDI / CAPTO etc. Interchangeable rotating spindle-holder (to be specified) max run-out error < 2 µm.
• Lubricated for life double re-circulating ball bearing slides
• Universal mechanical tool clamping managed via software.
• Pneumatic-mechanic brake of the spindle-holder rotation with radial compensation of the clamping force: no axis angular run error.
• Constant load Archimedean spiral spring (as opposed to a mass counter-balance system).
• Single widescreen monitor for the images reading out and the measure function management:
  • Tools measure and cutting inspection:
    • 23" Full HD Widescreen Monitor (on the column support).
    • C-MOS sensor 1,3 Mega pixels, USB 2 link High speed Area framed image 12,8 x 10 mm (4 times as great as the standard).
  • Measure management and machine operator interface:
    • Celeron M® Processor on Industrial Main Board architecture.
    • Operating system : Ubuntu LINUX.
    • Keyboard.
    • Mouse.
• Software standard:
  • tool set compiler and Post Processor universal generator.
  • CNC machine origin management and adapters.
  • Tool list creation and/or single tool, even multi-cutting.
  • Automatic change of CNC machine origin allocation.
  • Reading/writing module on magnetic chip code-holders (Balluff for example, hardware not included).
  • Tool images shooting in inspection and its rescue in graphical format.
• Vision System:
  • Camera One - 28 x optical magnification, 1.3 megapixel CMOS sensor (10 x 10)
  • Camera Two (swivel) - 70 x optical magnification, 1.3 megapixel CMOS sensor (4 x 4), 3.9 µ m / pixel
  • Both cameras have a digital zoom
• ELBO CONTROLLI Linear Transducers in optical glass type SLIDE 371 certified HP laser
  • Axes resolution: X= 1 µm, Z= 1 µm
• Anti-dust cover provided for when not in use.
• Overall dimensions : L= 1873 mm, H= 1960 mm, D= 687 mm
