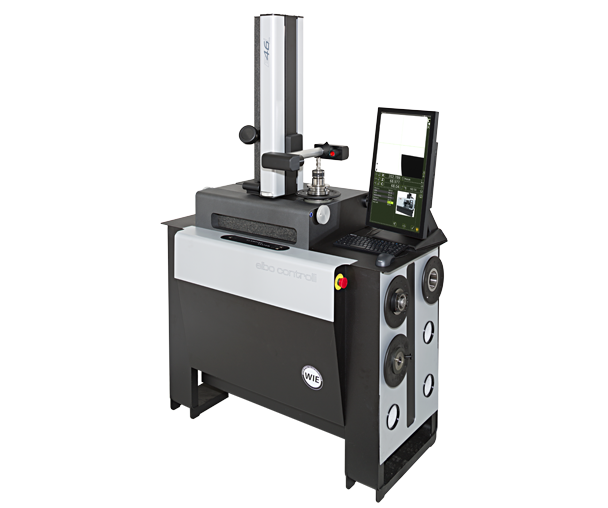

Прибор для настройки инструмента вне станка Nikken E46L Tool Presetter
Цену уточняйте
- Под заказ
Отправка с 05 января 2025Прибор для настройки инструмента вне станка Nikken E46L Tool PresetterПод заказ
Цену уточняйте
+375 (29) 630-06-97
возврат товара в течение 14 дней по договоренности
TECHNICAL DATA
- Measuring range: diameter max 400 mm (radius 200 mm); height max 600 mm.
- Machine structure in stainless steel offering high mechanical durability and long life, floor mounted with 3 fixed supports and 1 adjustable support in steel.
- Base and column made of ground granite: linearity max error 2 μm/m certification with Taylor Hobson res.1 μm/m electronic millesimal level.
- ISO/BT/HSK/VDI …... etc. Interchangeable rotating spindle-holder (to be specified) max run-out error < 2 μm.
- Spindle-holder identification system (SP-ID) with NFC technology to automatically identify the spindle-holder after each replacement.
- Double vault arc prismatic slideways: 2 for X axis slideways, 1 for Z axis slideway.
- Double re-circulating ball bearing slides, lubricated for life (3) (preloading slides/slideways: P/H class).g
- Universal mechanical tool clamping managed via software. (ISO/BT tools only).
- Tool-holder taper connection control (run-out test, ISO/BT tools only).
- Pneumatic-mechanic braking of the spindle-holder rotation with radial compensation of the clamping force: no axis angular run error.
- Constant load Archimedean spiral spring (as opposed to a mass counter-balance system).
- Vision-system for tool measuring and cutting inspection consisting of:
- C-MOS sensor - Framed image area 10 x 10mm.
- Magnifications 26X with 2X and 4X digital zoom capability.
- Bi-telecentric lens
- Optical doublets at low F/Number in order to eliminate the error of the clearness circle
- Red light episcopic leds illuminator with ring lens, red light diascopic led puntiform illuminator
Характеристики
| Основные атрибуты | |
|---|---|
| Производитель | Nikken |
| Гарантийный срок | 12 мес |
| Страна производитель | Япония |
Спецификация
Информация для заказа
- Цена: Цену уточняйте
- Способ упаковки: в коробке
