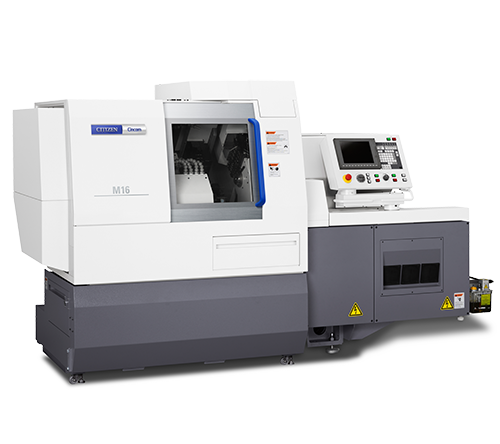

Автомат продольного точения CITIZEN M16

Под заказОптом и в розницу

Оптовые и розничные цены уточняйте

Написать
Автомат продольного точения CITIZEN M16
Автомат продольного точения CITIZEN M16 Под заказ
Написать
Перезвоните мне
  • +375 показать номер +375296300697
Перезвоните мне
  • +375 показать номер +375296300697
  • Адрес и контакты
    • Телефон:
      +375296300697
    • Контактное лицо:
      Гусельцев Максим Александрович
    • Адрес:
      пр-т Пушкина, 50, офис 011, Минск, Беларусь
    • Email:
      precizionbel@mail.ru

The M16 type VIII features a B axis for rotary tools on the gang tool post. It can machine angled holes and complex shapes. The swivel angle of the B axis is 135° and it can be used in both front and back machining. The back tool post is equipped with a Y axis (types VII and VIII) and up to 9 tools can be carried in 3 rows. But we have not just upped the number of controlled axes and the number of mountable tools. In addition to upping the rapid feed rate to 32 m/min and running high-speed calculation with the latest NC unit, the maximum rotational speeds of the front/back spindles and the rotary tools on the turret tool post have also been increased. By machining with the optimum conditions for small-diameter workpieces and small-diameter drills/end mills, high productivity can be achieved. The M16 brings advanced functions and raises the level of the basic functions. It permits greater versatility in workpiece shapes, and has the edge when machining the increasingly complex parts for the IT and medical fields.

Technical Data
Item Cincom M416-V Cincom M416-VIII
Max. machining diameter (D) Ø 16 mm Ø 16 mm
Max. machining length (L) 200 mm / Spannung 200 mm / Spannung
Spindle through-hole diameter Ø 20 mm Ø 20 mm
Main spindle speed 12.000 U/min 12.000 U/min
Back tool post rotary tool - Spindle speed 8.000 U/min 8.000 U/min
Gang rotary tool - Spindle speed 12.000 U/min 12.000 U/min
Number of tools to be mounted 32+α 36+α
Gang turning tool 5 5
Gang rotary tool 5~12 (including back 4 tools) 5~12 (including back 4 tools)
Turret 10+α 10+α
Back tool post 5 9
Rapid feed rate - All axes (except X2, Y2, Y3 & B axes 32 m/min 32 m/min
X2 axis 16 m/min 16 m/min
Y2 axis 8 m/min 8 m/min
Y3 axis   32 m/min
Spindle drive 2.2/3.7 kW 2.2/3.7 kW
Back spindle drive 0.75/1.5 kW 0.75/1.5 kW
Gang tool post rotary tool drive 0.69 kW 0.69 kW
Turret rotary tool drive 0.69 kW 0.69 kW
Back tool post rotary tool drive   0.75 kW
Weight 2.900 kg 2.950 kg
