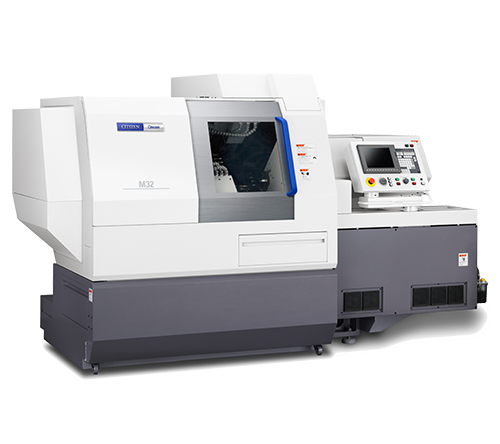

Автомат продольного точения CITIZEN M32
Автомат продольного точения CITIZEN M32 Под заказ
Написать
Перезвоните мне
  • +375 показать номер +375296300697
Перезвоните мне
  • +375 показать номер +375296300697
  • Адрес и контакты
    • Телефон:
      +375296300697
    • Контактное лицо:
      Гусельцев Максим Александрович
    • Адрес:
      пр-т Пушкина, 50, офис 011, Минск, Беларусь
    • Email:
      precizionbel@mail.ru

The M32 is renowned for its leading capability for 3 tool simultaneous machining in a compact floor space. The all round combination of flexible tooling, large tool capacity, and outstanding ease of use has made the M32 our success story in the new century. The next generation M32 increases the 3 tool simultaneous machining abilities with a new Y3 axis on the back tool post which carries up to 9 tools (up to 6 driven). New advanced functions include a B axis on the gang tool post with 4 axis simultaneous containing control. There are 4 types of new M32: M32-III, -V, -VII and -VIII.

Features:

  • more tools
  • more functions
  • more flexibility
  • higher productivity
  • same floor space
  • more value



Technical Data
Item Cincom M432-V Cincom M432-VIII
Max. machining diameter (D) Ø 32 mm Ø 32 mm
Max. machining length (L) 320mm /1 chucking 320mm /1 chucking
Spindle through-hole diameter Ø 36 mm Ø 36 mm
Main spindle speed 8.000 U/min 8.000 U/min
Spindle speed of the gang rotary tool 6,000min-1 (Rating 4,500min-1) 6,000min-1 (Rating 4,500min-1)
Spindle speed of the turret rotary tool 6.000 U/min 6.000 U/min
Back spindle speed 8.000 U/min 8.000 U/min
Number of tools to be mounted 25+a 31+a
Gang tool post 5 5
Gang rotary tool 5 4
Gang B axis rotary tool   3
Number of turret station 10 10
Back tool post 5 9
Rapid feed rate - All axes (except X2 & Y2) 32 m/min 32 m/min
X2 axis 18 m/min 18 m/min
Y2 axis 8 m/min 8 m/min
Y3 axis   32 m/min
Spindle drive 3.7/7.5 kW 3.7/7.5 kW
Back spindle drive 2.2/3.7 kW 2.2/3.7 kW
Gang tool post rotary tool drive 1.0 kW 1.0 kW
Turret rotary tool drive 0.75/1.5 kW 0.75/1.5 kW
Back tool post rotary tool drive   1.0 kW
Weight 3500 kg 3550 kg
Item Cincom M432-III Cincom M432-VII
Max. machining diameter (D) Ø 32 mm Ø 32 mm
Max. machining length (L) 320mm /1 chucking 320mm /1 chucking
Spindle through-hole diameter Ø 36 mm Ø 36 mm
Main spindle speed 8.000 U/min 8.000 U/min
Spindle speed of the gang rotary tool 6,000min-1 (Rating 4,500min-1) 6,000min-1 (Rating 4,500min-1)
Spindle speed of the turret rotary tool 6.000 U/min 6.000 U/min
Back spindle speed 8.000 U/min 8.000 U/min
Number of tools to be mounted 25+a 29+a
Gang tool post 5 5
Gang rotary tool 5 5
Gang B axis rotary tool
Number of turret station 10 10
Back tool post 5 9
Rapid feed rate - All axes (except X2 & Y2) 32 m/min 32 m/min
X2 axis 18 m/min 18 m/min
Y2 axis 8 m/min 8 m/min
Y3 axis   32 m/min
Spindle drive 3.7/7.5 kW 3.7/7.5 kW
Back spindle drive 2.2/3.7 kW 2.2/3.7 kW
Gang tool post rotary tool drive 1.0 kW 1.0 kW
Turret rotary tool drive 0.75/1.5 kW 0.75/1.5 kW
Back tool post rotary tool drive   1.0 kW
Weight 3450 kg 3550 kg
