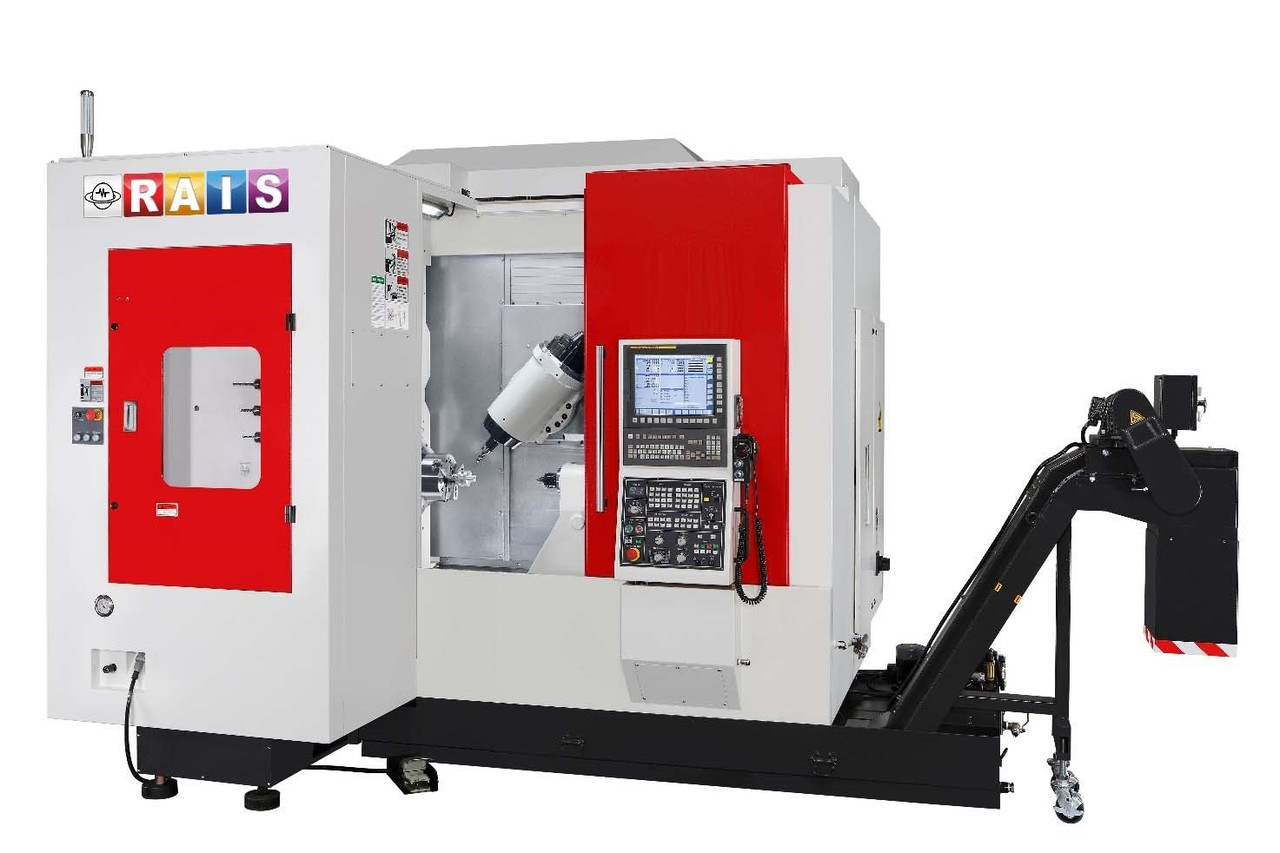

Многооперационный токарно-фрезерный центр RAIS T450MT
Цену уточняйте
- Под заказ
- Оптом и в розницу
Отправка с 10 мая 2024MACHINE SPECIFICATIONS
|
T450MT |
Item |
Unit |
Specification |
|
Capacity |
Max. swing dia. |
mm |
dia.530 |
|
Max. Machining Diameter |
mm |
dia.500 |
|
|
Max. Machining Length |
mm |
500 |
|
|
Max. Bar Diameter |
mm |
dia.65 |
|
|
Travel |
X-axis Travel |
mm |
560 |
|
Y-axis Travel |
mm |
±125 |
|
|
Z-axis Travel |
mm |
560+93 |
|
|
W-axis Travel |
mm |
910 |
|
|
B-axis Rotating Angle |
degree |
-20°~200° |
|
|
C-axis Rotating Angle |
degree |
360° |
|
|
Feedrate |
X-axis Rapid Feedrate |
mm |
36 |
|
Y-axis Rapid Feedrate |
mm |
36 |
|
|
Z-axis Rapid Feedrate |
mm |
36 |
|
|
W-axis Rapid Feedrate |
mm |
8 |
|
|
B-axis Max. RPM |
RPM |
25 |
|
|
C-axis Max. RPM |
RPM |
250 |
|
|
Turning Spindle |
Chuck Dimensions S1 |
inch |
8" |
|
Chuck Nose Type S1 |
|
A2-6 |
|
|
Hole Diameter S1 |
mm |
dia.75 |
|
|
Spindle Max. RPM S1 |
RPM |
4500 |
|
|
Motor Output Power S1 |
KW |
15/22 |
|
|
Milling Spindle |
Spindle Max. RPM |
RPM |
12000 |
|
Motor Output Power |
KW |
11/22 |
|
|
B-axis Min indexing Angle |
degree |
0.001° |
|
|
Tool Change |
Tool indexing Angle/Position |
|
90°/4 positions |
|
Tool type |
|
HSK-63T |
|
|
Tool Magazine Capacity |
T |
36 |
|
|
Max. Tool Diameter (without adjacent tool) |
mm |
dia.90 (120) |
|
|
Max. Tool Length |
mm |
250 |
|
|
Max. Tool Weight |
kg |
8 |
|
|
Quill-Type Tailstock |
Quill Type |
|
MT5 |
|
Machine Dimension |
Machine Height |
mm |
2715 |
|
Occupancy (without chip conveyor) |
mm |
3106x2838 |
|
|
Machine Weight |
kg |
9200 |
|
|
Energy Requirement |
Power Capacity |
KVA |
35 |
|
Compress Air Requirement |
kg/cm3 |
6 |
| Основные | |
|---|---|
| Состояние | Новое |
| Дополнительный сервис | Установка, Сервисное обслуживание, Обучение |
| Страна производитель | Болгария |
| Пользовательские характеристики | |
| Производитель | RAIS Ltd |
- Цена: Цену уточняйте
